AISI/SAE 8620 Carbon Steel Bar

8620 steel bar is made of a kind of low alloy steel mainly composed of iron, carbon, silicon, manganese, phosphorus, sulfur, chromium, nickel and other elements. It has good hardenability and weldability, and can obtain excellent mechanical properties through heat treatment.

Email：cong@jsygsteel.com

WhatsApp：+86 19963059386

product description

AISI/SAE 8620 Carbon Steel Bar Description

8620 alloy steel is a medium-carbon low-alloy steel with high hardness and dimensional stability, as well as high strength and plasticity. In addition, 8620 alloy steel also has good weldability, forgeability and processability, and is widely used in industrial fields such as manufacturing shaft parts, gears, carburized parts, crankshafts and machine tools. 8620 alloy steel is widely used in aviation, automobiles, machinery and other fields, especially in manufacturing high-load, high-strength and fatigue-resistant parts.

Product Parameters

Product Name	AISI/SAE 8620 Carbon Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

C	Mn	Si	Mo	Cr	Ni	S	P
0.18-0.23	0.70-0.90	0.15-0.35	0.15-0.25	0.40-0.60	0.40-0.70	0.035	0.040

Mechanical Properties

Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation in 100-150 mm (%)	Reduction in Area	Hardness
SAE 8620	≥ 380	≥ 210	≥ 25	≥ 50	≤ 111HB

Scope of Application

AISI 8620 can be used in a variety of medium strength applications, such as camshafts, fasteners, gears and chains/chain pins.

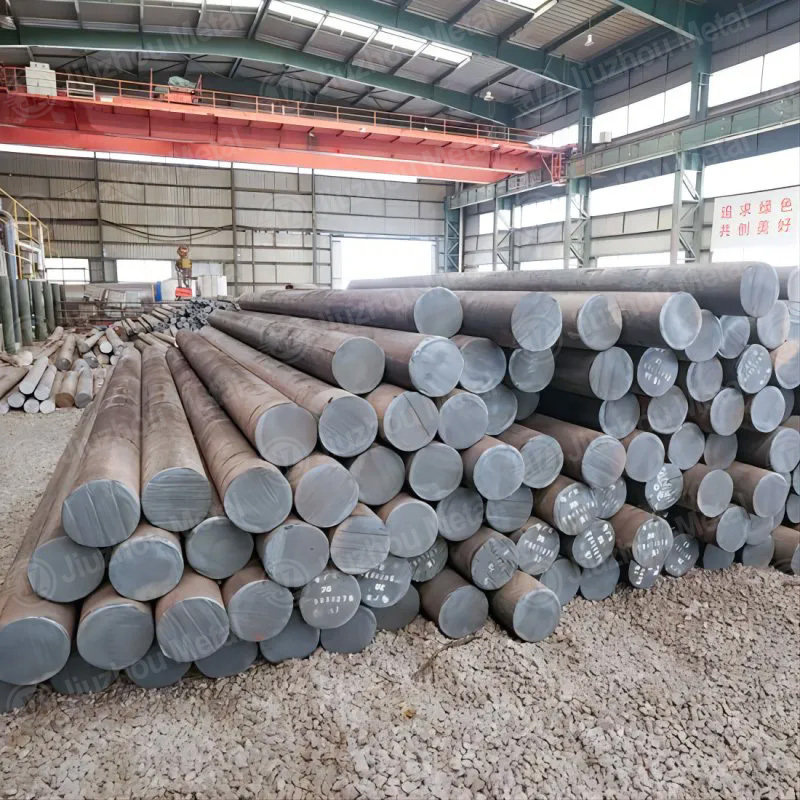

Factory Display

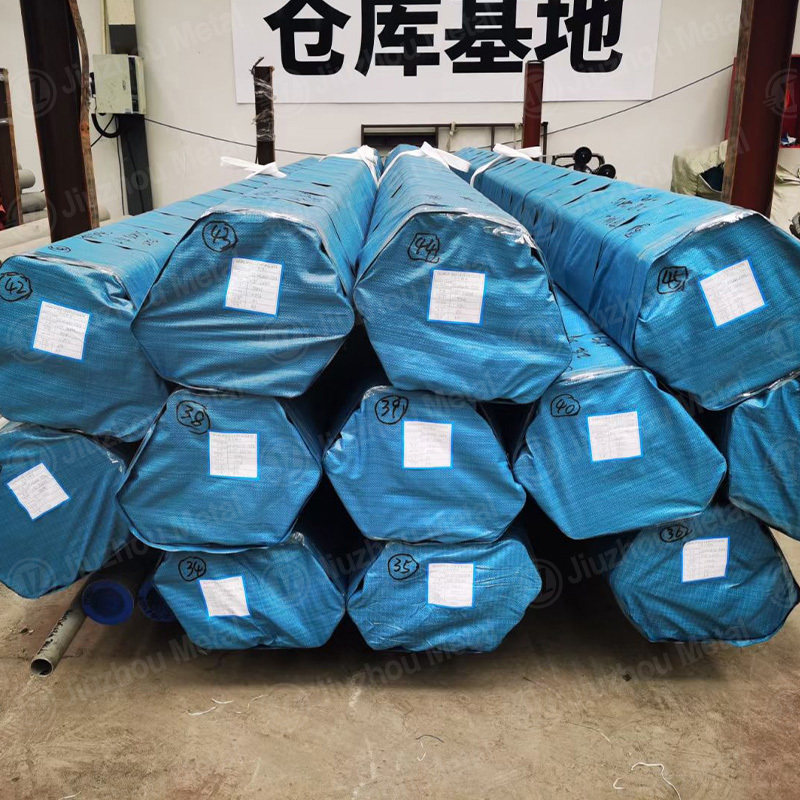

Mode Of Transport

FAQ

Q1: Are you a manufacturer or a trading company?
A: We are a professional metal products manufacturer based in Shandong, China, with our own production facilities and a strong supply chain. We specialize in carbon steel and stainless steel products, with over 100,000 tons of stock available year-round.

Q2: Where is your company located? Can I visit your factory?
A: Our company is located in Shandong, China. We welcome customers and partners from all over the world to visit our facilities. Please contact us in advance to arrange a visit.

Q3: What products does your company mainly supply?
A: We mainly supply carbon steel and stainless steel products in various forms, including plates, pipes, coils, bars, structural steel (H-beam, channel steel, angle steel), and customized metal components. We cover a full range of specifications to meet diverse customer needs.

Q4: Do you support OEM or customized orders?
A: Yes. We have years of experience in product customization. We can produce according to your drawings, samples, or specific technical requirements. Please contact us with your customization needs.

Q5: What material grades do you offer?
A: For carbon steel, we offer grades such as A36, S235JR, Q235, Q345, and more. For stainless steel, we offer 304, 304L, 316, 316L, 201, 430, and other common grades. Custom grades are available upon request.

Q6: How do you guarantee product quality?
A: Our factory operates under strict QA/QC standards. Every product is inspected during production and before shipment to ensure it meets agreed quality specifications. We can provide mill test certificates and accept thirdparty inspections upon request.
