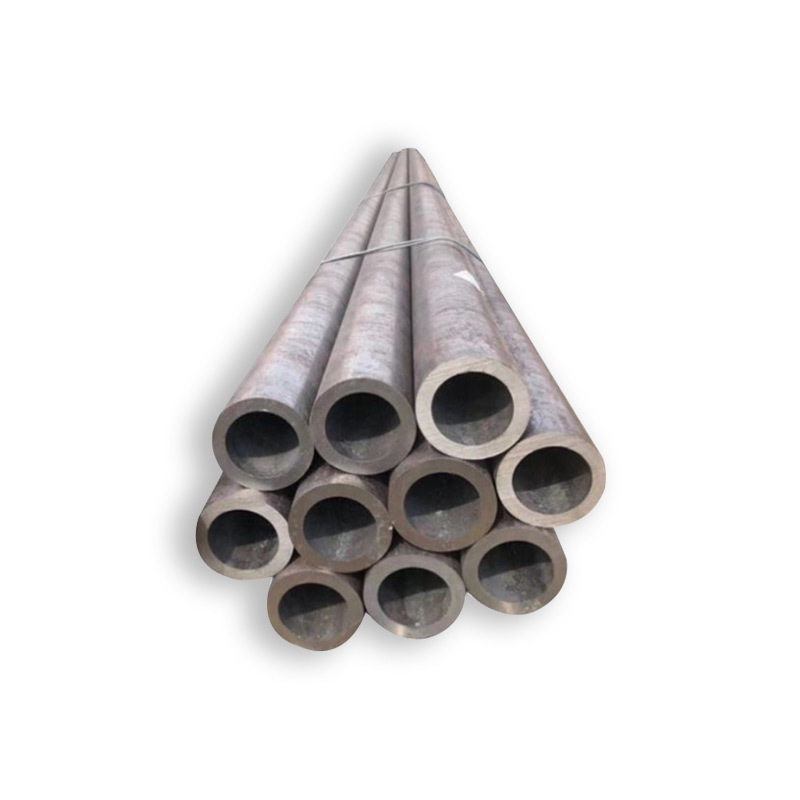

DIN 17175 Seamless Steel Pipe

DIN 17175 is a standard specification for seamless tubes of heat-resistant steels used in elevated temperatures and high-pressure environments.

Email：cong@jsygsteel.com

WhatsApp：+86 19963059386

product description

DIN 17175 Seamless Steel Pipe Description

DIN 17175 standard covers a range of materials called heat-resistant steels, which are specifically developed to maintain their mechanical properties and structural integrity at elevated temperatures. These materials include various alloy and non-alloy steel grades, such as 15Mo3, 13CrMo44, 10CrMo910, and others.DIN 17175 pipes are intended for use in high-temperature and high-pressure environments, such as in boilers, pipelines, and heat exchangers. The standard outlines the requirements for dimensions, technical conditions, and mechanical properties of these tubes, ensuring their suitability and reliability in various industrial applications involving elevated temperatures.

Product Parameters

Product Name	DIN 17175 Seamless Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

DIN 17175	C	Si	Mn	P	S	Ni	Cr	Mo	Others
St35.8	0.17 Max	0.10-0.35	0.40-0.80	0.040 Max	0.040 Max	-	-	-	-
St45.8	0.21 Max	0.10-0.35	0.40-1.20	0.040 Max	0.040 Max	-	-	-	-
17Mn4	0.14-0.20	0.20-0.40	0.90-1.20	0.040 Max	0.040 Max	-	0.30 Max	-	-
19Mn5	0.17-0.22	0.30-0.60	1.00-1.30	0.040 Max	0.040 Max	-	0.30 Max	-	-
15Mo3	0.12-0.20	0.10-0.35	0.40-0.80	0.035 Max	0.035 Max	-	-	0.25-0.35	-
13CrMo910	0.10-0.18	0.10-0.35	0.40-0.70	0.035 Max	0.035 Max	-	0.70-1.10	0.45-0.65	-
10CrMo910	0.08-0.15	0.50 Max	0.40-0.70	0.035 Max	0.035 Max	-	2.00-2.50	0.90-1.20	-
14MoV63	0.10-0.18	0.10-0.35	0.40-0.70	0.035 Max	0.035 Max	-	0.30-0.60	0.50-0.70	V: 0.22-0.32
X20CrMoV121	0.17-0.23	0.50 Max	0.40-0.70	0.030 Max	0.030 Max	0.30-0.80	10.00-12.50	0.80-1.20	V: 0.25-0.35

Mechanical Properties

DIN 17175	Material No.	Minimum Yield Point MPa or N/mm2		Tensile Strength
DIN 17175	Material No.	WT: 16 mm Max	WT: 16-40 mm	Tensile Strength
St35.8	1.0305	235	225	360-480
St45.8	1.0405	-	245	410-530
17Mn4	1.0481	-	275	460-580
19Mn5	1.0482	-	315	510-610
15Mo3	1.5415	275	275	450-600
13CrMo910	1.7335	295	295	440-590
10CrMo910	1.7380	285	285	450-600
14MoV63	1.7715	325	325	460-610
X20CrMoV121	1.4922	490	490	690-850

Scope of Application

DIN 17175 alloy steel pipe adopts heat-resistant pipe, which is suitable for high-pressure environment below 600 ℃. The application scope includes the construction of boilers, pipelines, pressure vessels and equipment.

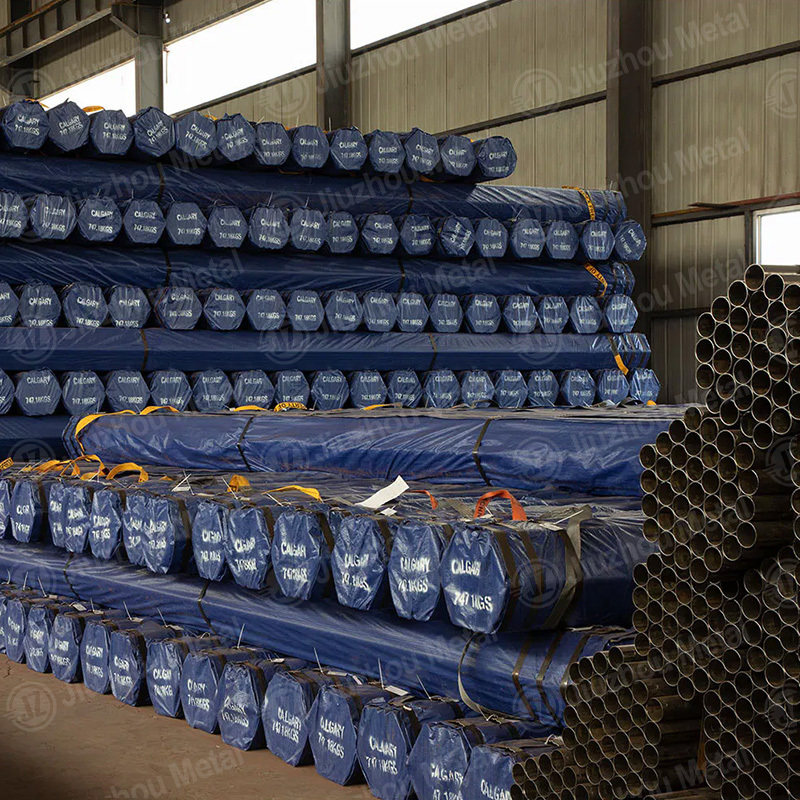

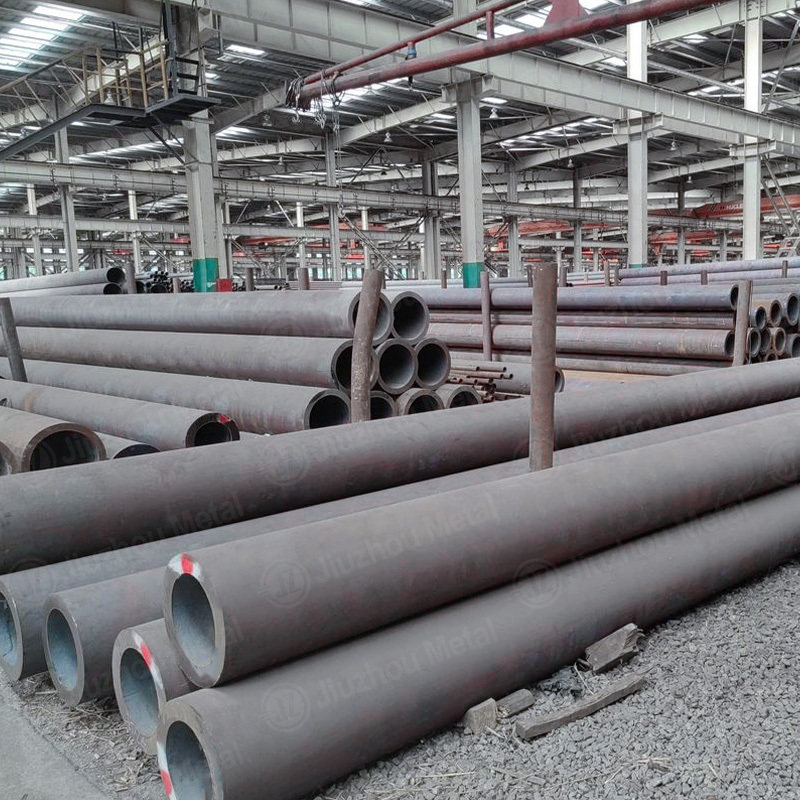

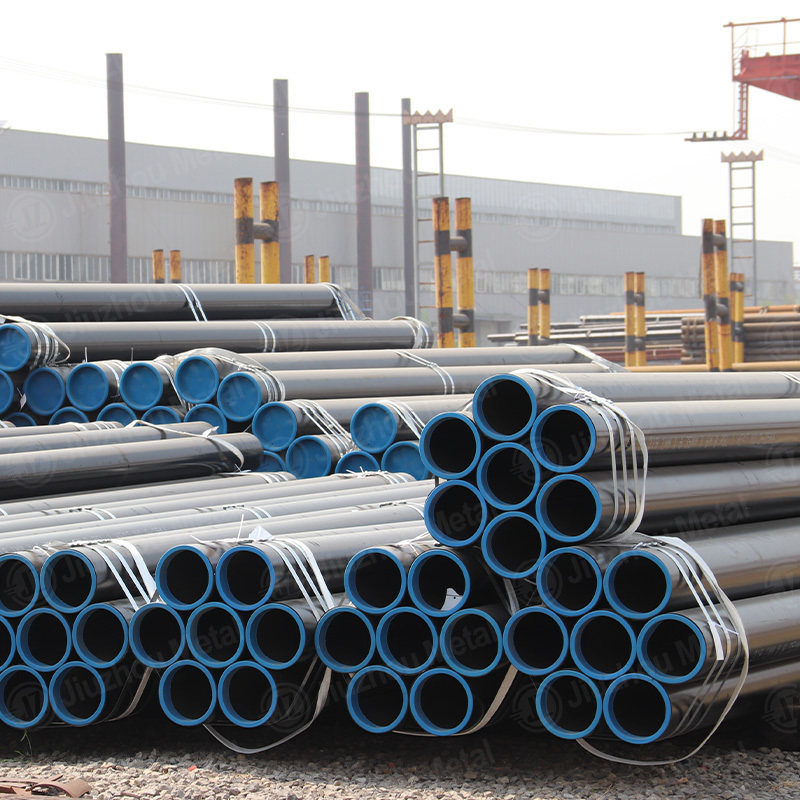

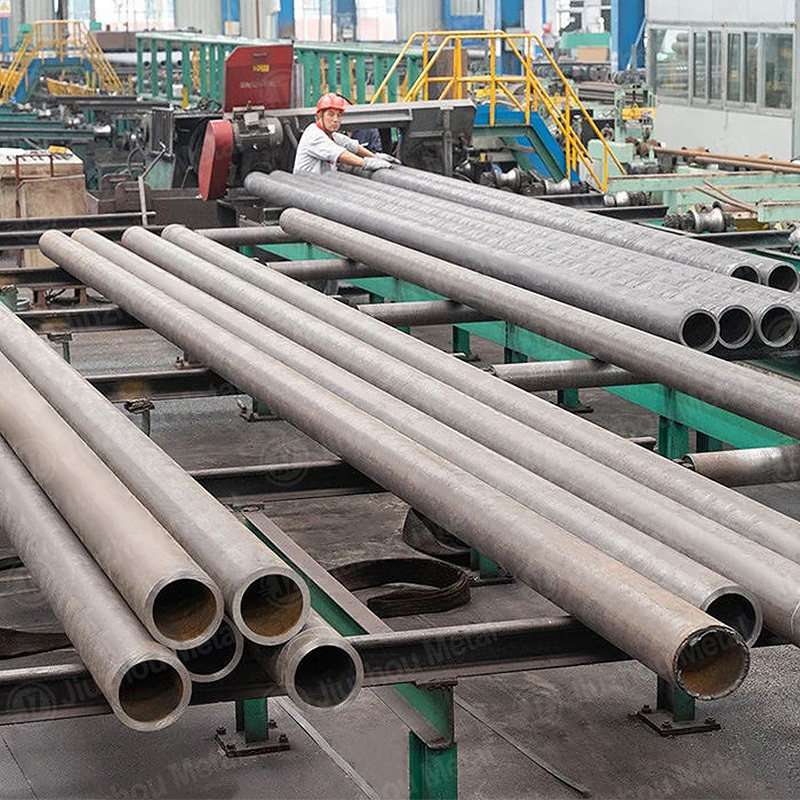

Factory Display

Mode Of Transport

FAQ

Q1: Are you a manufacturer or a trading company?
A: We are a professional metal products manufacturer based in Shandong, China, with our own production facilities and a strong supply chain. We specialize in carbon steel and stainless steel products, with over 100,000 tons of stock available year-round.

Q2: Where is your company located? Can I visit your factory?
A: Our company is located in Shandong, China. We welcome customers and partners from all over the world to visit our facilities. Please contact us in advance to arrange a visit.

Q3: What products does your company mainly supply?
A: We mainly supply carbon steel and stainless steel products in various forms, including plates, pipes, coils, bars, structural steel (H-beam, channel steel, angle steel), and customized metal components. We cover a full range of specifications to meet diverse customer needs.

Q4: Do you support OEM or customized orders?
A: Yes. We have years of experience in product customization. We can produce according to your drawings, samples, or specific technical requirements. Please contact us with your customization needs.

Q5: What material grades do you offer?
A: For carbon steel, we offer grades such as A36, S235JR, Q235, Q345, and more. For stainless steel, we offer 304, 304L, 316, 316L, 201, 430, and other common grades. Custom grades are available upon request.

Q6: How do you guarantee product quality?
A: Our factory operates under strict QA/QC standards. Every product is inspected during production and before shipment to ensure it meets agreed quality specifications. We can provide mill test certificates and accept thirdparty inspections upon request.
