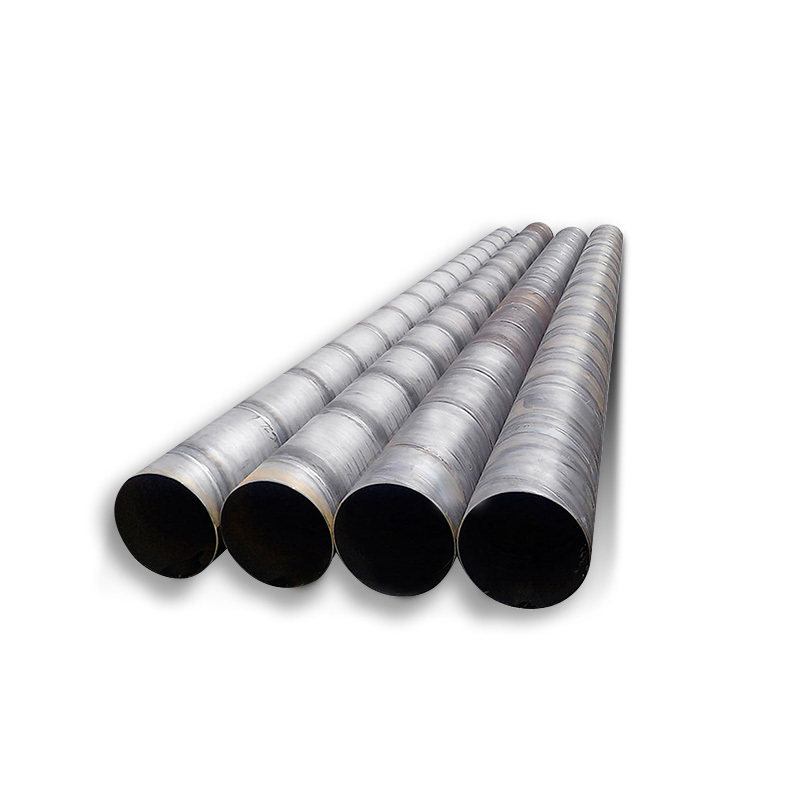

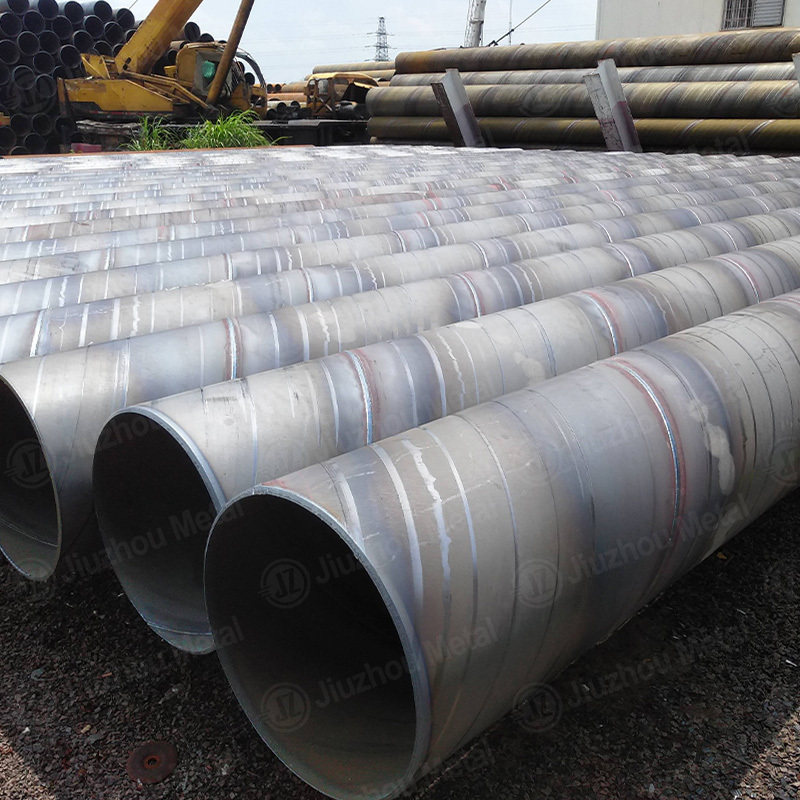

Spiral Submerged Arc Welded Pipe SSAW

The spiral submerged arc welded pipe is made of hot-rolled steel strip through constant temperature spiral forming and automatic submerged arc welding. The manufacturing process is to roll the steel strip, make the rolling direction at a certain angle to the center direction of the tube, and then form and weld, so the weld is spiral.

Email：cong@jsygsteel.com

WhatsApp：+86 19963059386

product description

Spiral Submerged Arc Welded Pipe SSAW Description

Submerged arc welding is an important welding method. Its inherent advantages include stable welding quality, high welding productivity, no arc light and little smoke, making it an ideal choice in the production of important steel structures such as pressure vessels, pipe section manufacturing, box beam and column manufacturing. The strength of SSAW spiral welded pipes is generally higher than that of straight seam welded pipes. Welded pipes with larger diameters can be produced from narrower billets, and welded pipes with different diameters can also be produced from billets of the same width.

Product Parameters

Product Name	Spiral Submerged Arc Welded Pipe SSAW
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	219.1mm-3580mm
Wall Thickness	3.2mm-25.4mm
Length	5.8 meters-12.5 meters, Support customization
Manufacturing Type	Spiral Welding

Product Material

Standard	Material
GB/T3091	Q235B, Q345A, Q345B
GB/T9711-2011	L210, L245, L290, L320, L360, L390, L415, L450, L485
API 5L PSL1	Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70, X80
API 5L PSL2	Gr.B, X42, X46, X52, X56, X60, X65, X70, X80
EN10217	P235TR1, P235TR2, P265TR1, P265TR2
ASTM A252	A252 Gr.2 , A252 Gr.3

Chemical Composition & Mechanical Properties

Standard	Grade	Chemical Composition (%)					Mechanical Properties (min)
Standard	Grade	C	Si	Mn	P	S	Tensile Strength (Mpa)	Yield Strength (Mpa)
API 5CT	H40	-	-	-	-	0.030	417	417
	J55	-	-	-	-	0.030	517	517
	K55	-	-	-	-	0.300	655	655
API 5L PSL 1	A	0.22	-	0.90	0.030	0.030	335	335
	B	0.26	-	1.20	0.030	0.030	415	415
	X42	0.26	-	1.30	0.030	0.030	415	415
	X46	0.26	-	1.40	0.030	0.030	435	435
	X52	0.26	-	1.40	0.030	0.030	460	460
	X56	0.26	-	1.40	0.030	0.030	490	490
	X60	0.26	-	1.40	0.030	0.030	520	520
	X65	0.26	-	1.45	0.030	0.030	535	535
	X70	0.26	-	1.65	0.030	0.030	570	570
API 5L PSL 2	B	0.22	0.45	1.20	0.025	0.015	415	415
	X42	0.22	0.45	1.30	0.025	0.015	415	415
	X46	0.22	0.45	1.40	0.025	0.015	435	435
	X52	0.22	0.45	1.40	0.025	0.015	460	460
	X56	0.22	0.45	1.40	0.025	0.015	490	490
	X60	0.12	0.45	1.60	0.025	0.015	520	520
	X65	0.12	0.45	1.60	0.025	0.015	535	535
	X70	0.12	0.45	1.70	0.025	0.015	570	570
	X80	0.12	0.45	1.85	0.025	0.015	625	625
ASTM A53	A	0.25	0.10	0.95	0.050	0.045	330	330
ASTM A53	B	0.30	0.10	1.20	0.050	0.045	415	415
ASTM A252	1	-	-	-	0.050	-	345	345
	2	-	-	-	0.050	-	414	414
	3	-	-	-	0.050	-	455	455
EN 10217-1	P195TR1	0.13	0.35	0.70	0.025	0.020	320	320
	P195TR2	0.13	0.35	0.70	0.025	0.020	320	320
	P235TR1	0.16	0.35	1.20	0.025	0.020	360	360
	P235TR2	0.16	0.35	1.20	0.025	0.020	360	360
	P265TR1	0.20	0.40	1.40	0.025	0.020	410	410
	P265TR2	0.20	0.40	1.40	0.025	0.020	410	410
EN 10217-2	P195GH	0.13	0.35	0.70	0.025	0.020	320	320
	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN 10217-5	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
EN 10217-5	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN 10219-1	S235JRH	0.17	-	1.40	0.040	0.040	360	360
	S275JOH	0.20	-	1.50	0.035	0.035	410	410
	S275J2H	0.20	-	1.50	0.030	0.030	410	410
	S355JOH	0.22	0.55	1.60	0.035	0.035	470	470
	S355J2H	0.22	0.55	1.60	0.030	0.030	470	470
	S355K2H	0.22	0.55	1.60	0.030	0.030	470	470

Scope of Application

Petroleum and natural gas industry, chemical industry, power industry, flammable liquid and incombustible liquid pipeline and building structure, water supply and drainage engineering, urban construction.

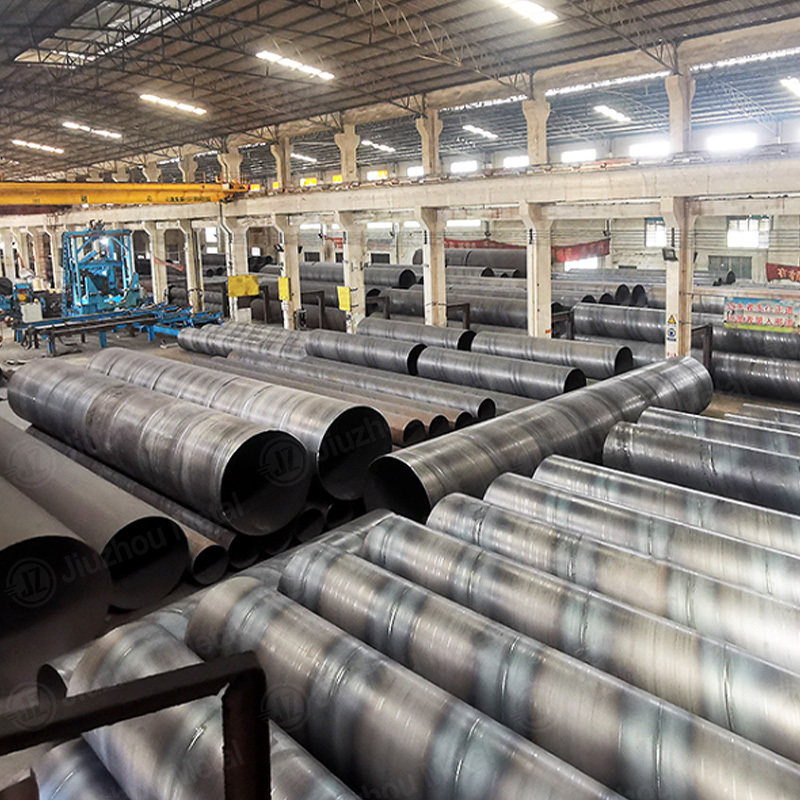

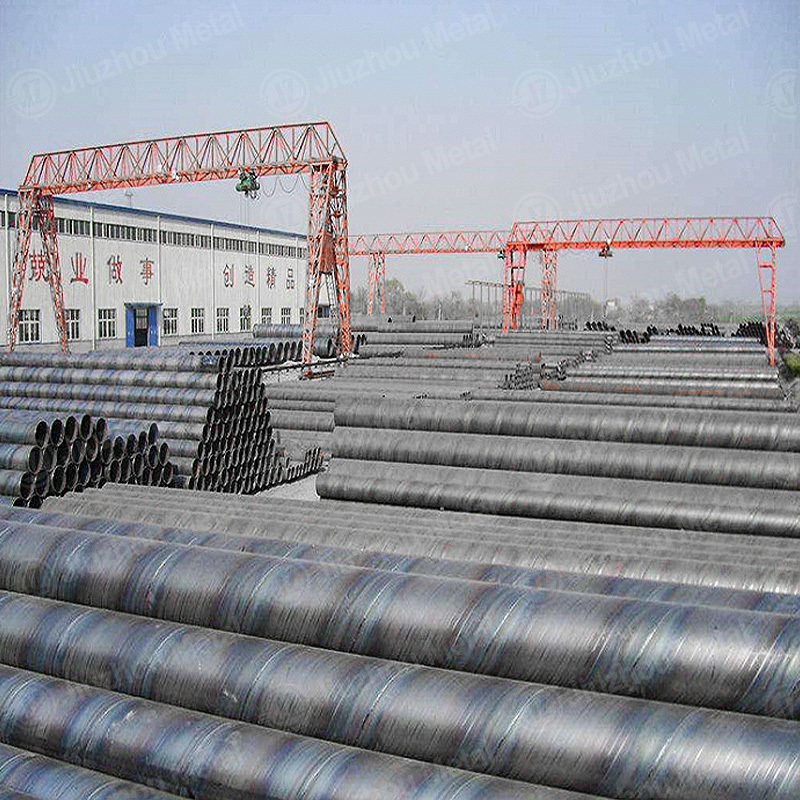

Factory Display

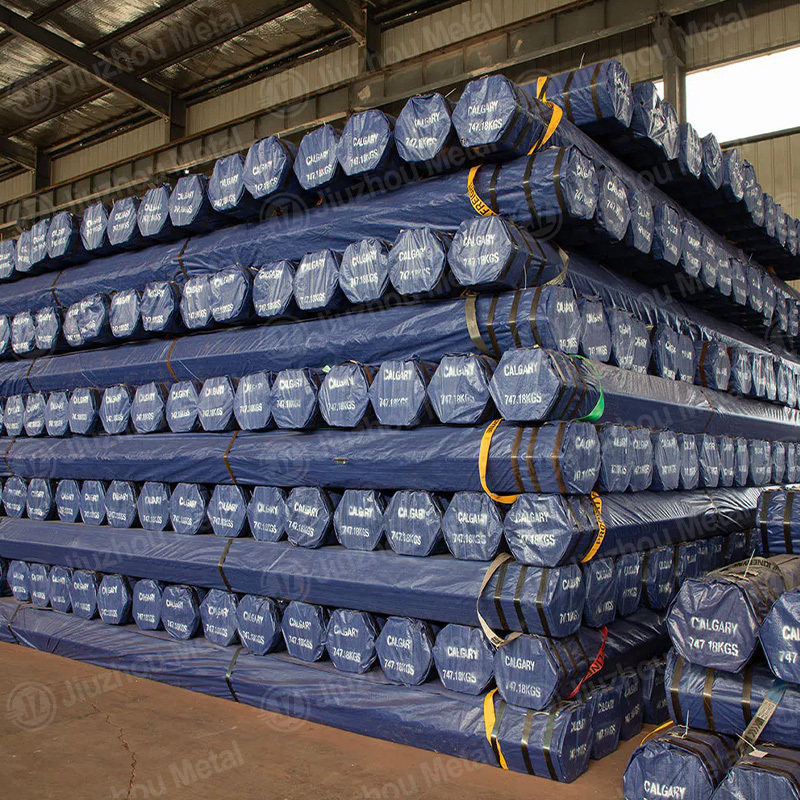

Mode Of Transport

FAQ

Q1: Are you a manufacturer or a trading company?
A: We are a professional metal products manufacturer based in Shandong, China, with our own production facilities and a strong supply chain. We specialize in carbon steel and stainless steel products, with over 100,000 tons of stock available year-round.

Q2: Where is your company located? Can I visit your factory?
A: Our company is located in Shandong, China. We welcome customers and partners from all over the world to visit our facilities. Please contact us in advance to arrange a visit.

Q3: What products does your company mainly supply?
A: We mainly supply carbon steel and stainless steel products in various forms, including plates, pipes, coils, bars, structural steel (H-beam, channel steel, angle steel), and customized metal components. We cover a full range of specifications to meet diverse customer needs.

Q4: Do you support OEM or customized orders?
A: Yes. We have years of experience in product customization. We can produce according to your drawings, samples, or specific technical requirements. Please contact us with your customization needs.

Q5: What material grades do you offer?
A: For carbon steel, we offer grades such as A36, S235JR, Q235, Q345, and more. For stainless steel, we offer 304, 304L, 316, 316L, 201, 430, and other common grades. Custom grades are available upon request.

Q6: How do you guarantee product quality?
A: Our factory operates under strict QA/QC standards. Every product is inspected during production and before shipment to ensure it meets agreed quality specifications. We can provide mill test certificates and accept thirdparty inspections upon request.
