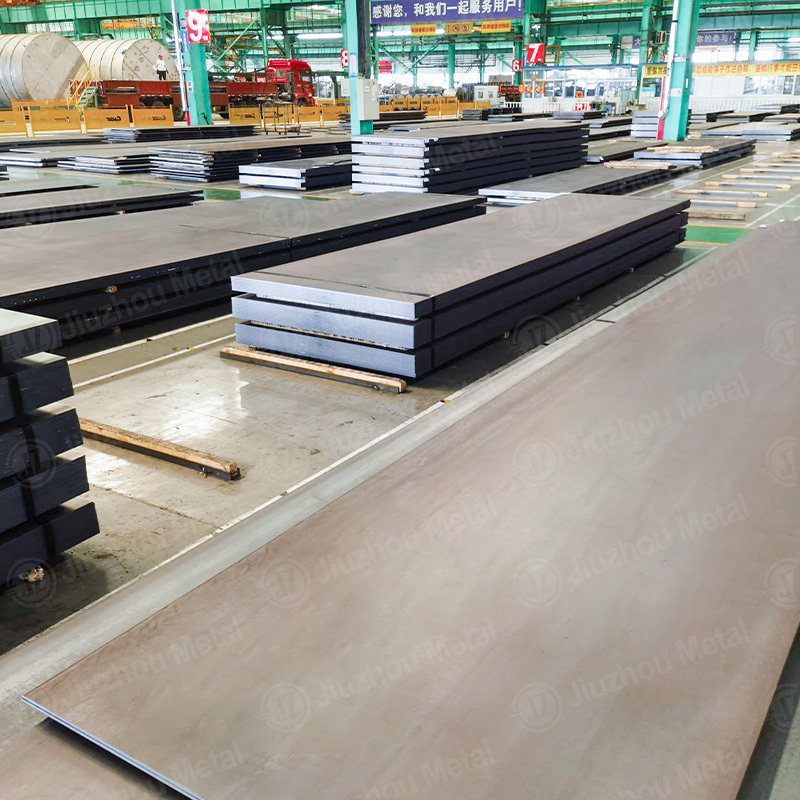

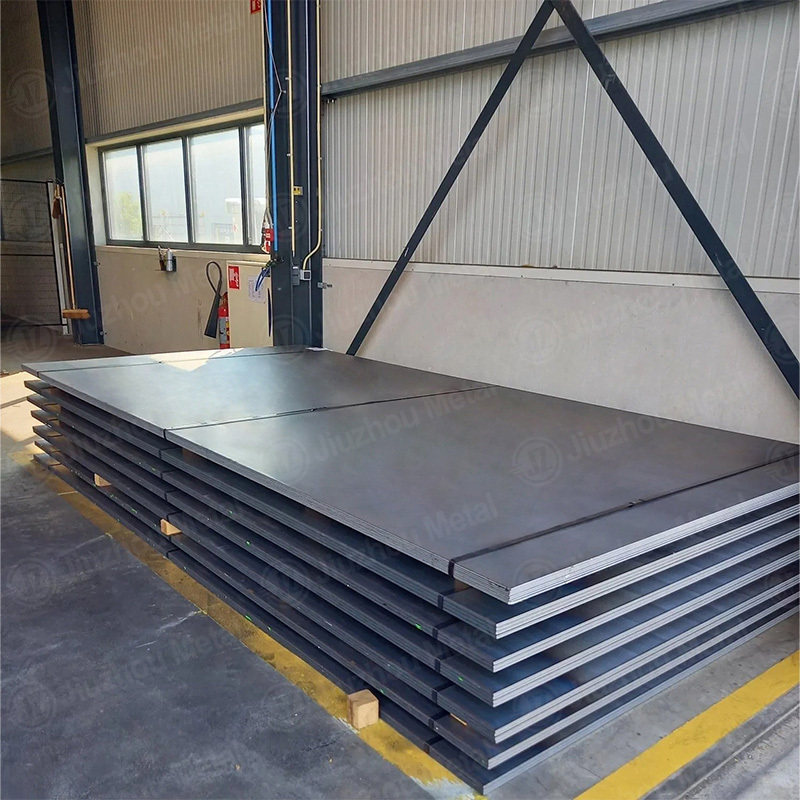

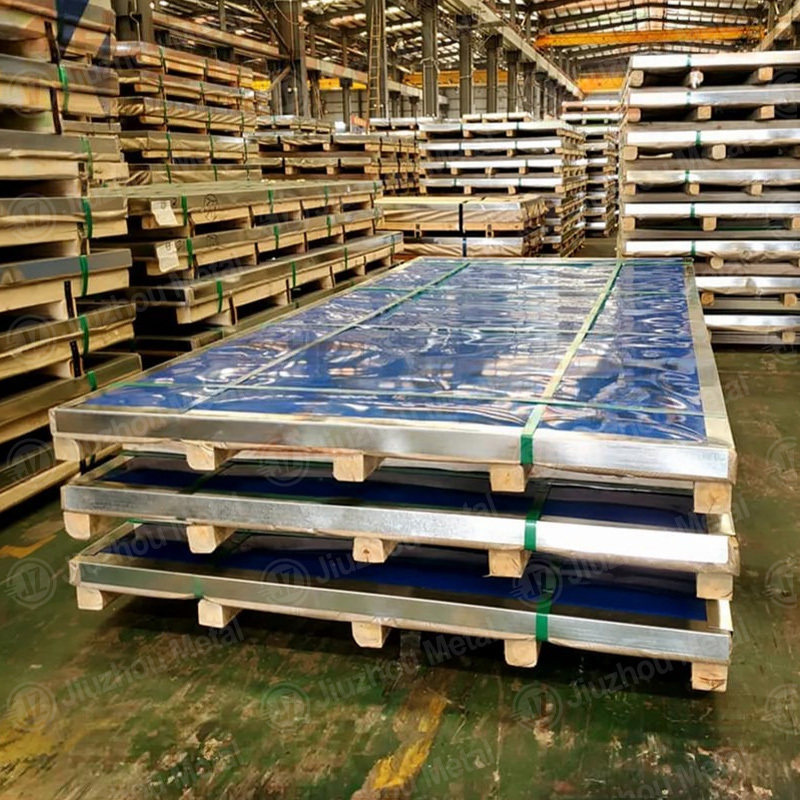

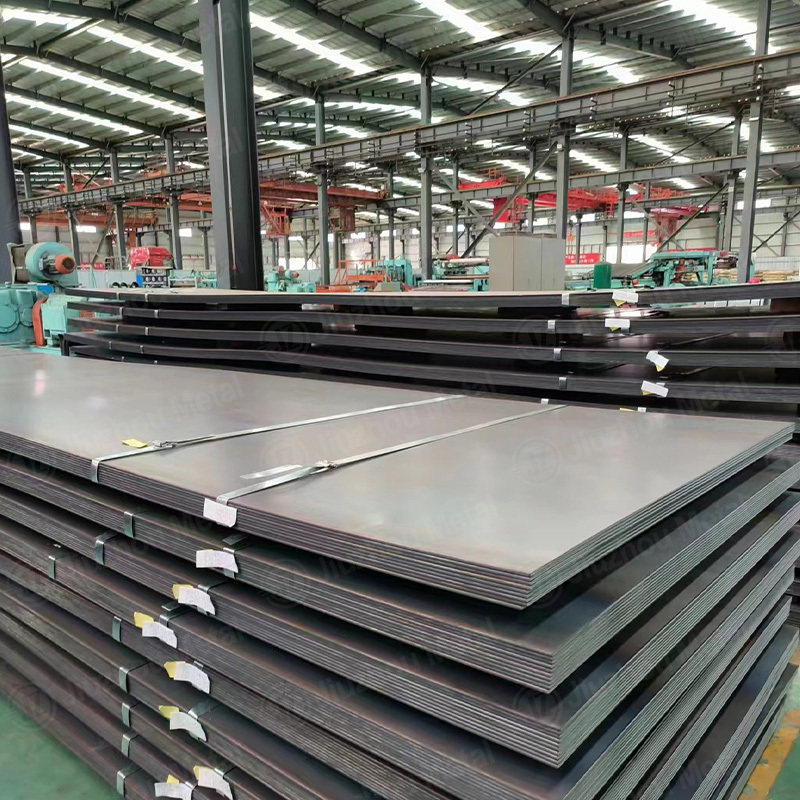

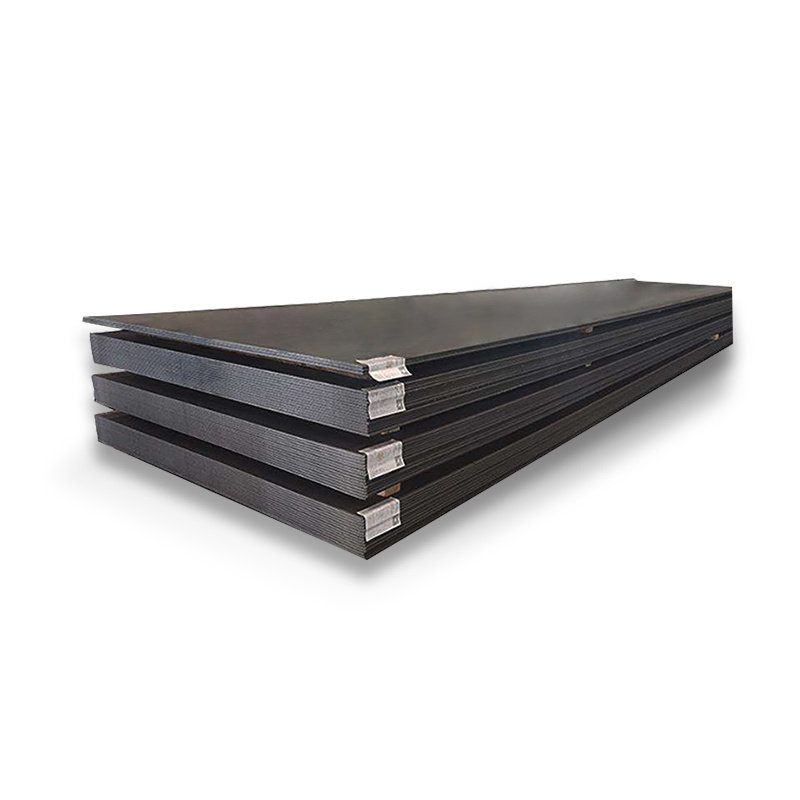

A514 Carbon Steel Plate

ASTM A514 steel is available in several grades: A, B, C, E, F, H, J, K, M, P, Q, S, and T, all of which have the same mechanical properties. ASTM A514 steel plates are conventionally quenched and tempered steel. ASTM A514 steel plate is known for its high yield strength, weldability and toughness. ASTM A514 steel is a special high-strength steel, mainly used as building structural steel.

Email：cong@jsygsteel.com

WhatsApp：+86 19963059386

product description

A514 Carbon Steel Plate Description

A514 steel plate is a high-strength low-alloy steel plate. Its main components include carbon (C), silicon (Si), manganese (Mn), phosphorus (P), sulfur (S), chromium (Cr), and nickel (Ni). , molybdenum (Mo), vanadium (V) and other elements. The characteristic of A514 steel plate is that it has extremely high strength and toughness, and can obtain higher strength through heat treatment. A514 steel plates are usually used in machinery manufacturing fields that need to withstand high pressure or high temperature environments. A514 steel plates are widely used in petrochemical, aerospace, nuclear industry, military and offshore platforms. In addition, A514 steel plate has good weldability and processability, and is also suitable for construction, bridges and other fields.

Product Parameters

Product Name	A514 Carbon Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered Or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A514	C	Mn	P	S	Ni	Cr	Mo
Grade A	0.15-0.21	0.80-1.10	0.035	0.4-0.8	-	0.5-0.8	0.18-0.28
Grade B	0.12-0.21	0.70-1.0	0.035	0.20-0.35	-	0.4-0.65	0.15-0.25
Grade C	0.1-0.2	1.10-1.5	0.035	0.15-0.30	-	-	0.15-0.30
Grade E	0.12-0.20	0.4-0.7	0.035	0.2-0.4	-	1.40-2.0	0.4-0.6
Grade F	0.1-0.2	0.60-1.0	0.035	0.15-0.35	0.70-1.0	0.4-0.65	0.4-0.6
Grade H	0.12-0.21	0.95-1.3	0.035	0.20-0.35	0.3-0.7	0.4-0.65	0.2-0.3
Grade J	0.12-0.21	0.45-0.7	0.035	0.20-0.35	-	-	0.50-0.65

Mechanical Properties

A514	Thickness mm	Yield Strength Min Mpa	Tensile Strength Mpa	Elongation Rate Min%
	20	690	760-895	18
	20-65	690	760-895	18
	65-150	620	690-895	18

Physical Performance

Physical Performance	Metric	Imperial
Density	7.85 g/cm3	0.284 lb/in³

Scope of Application

ASTM A514 steel plate is used where welding, processing, and ultra-high-strength steel are required to reduce weight or meet high-strength requirements. ASTM A514 steel plate is a commonly used structural steel in building construction, used in cranes or other large machinery that bears high loads.
