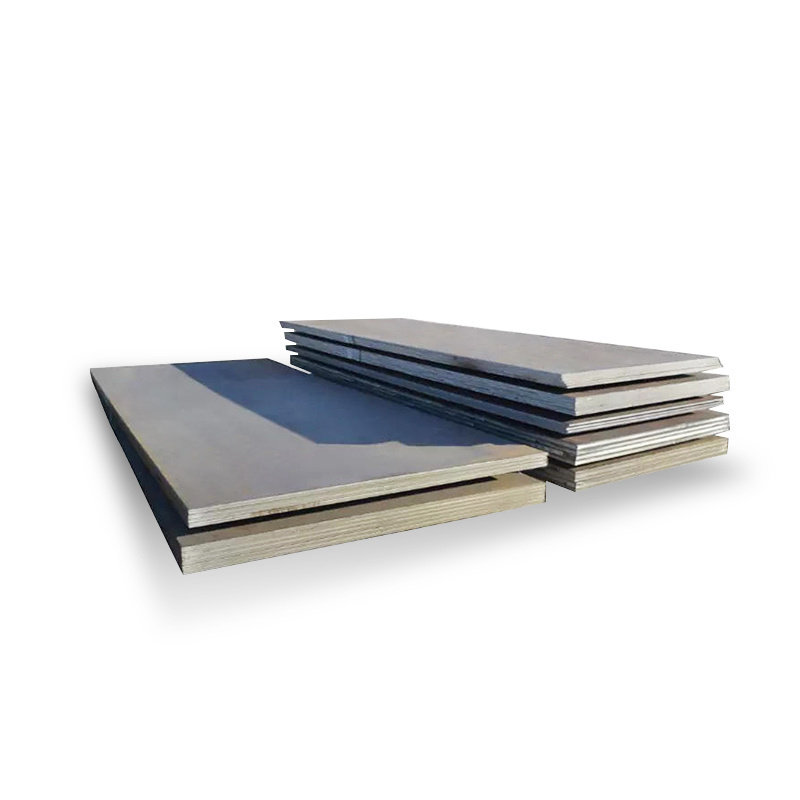

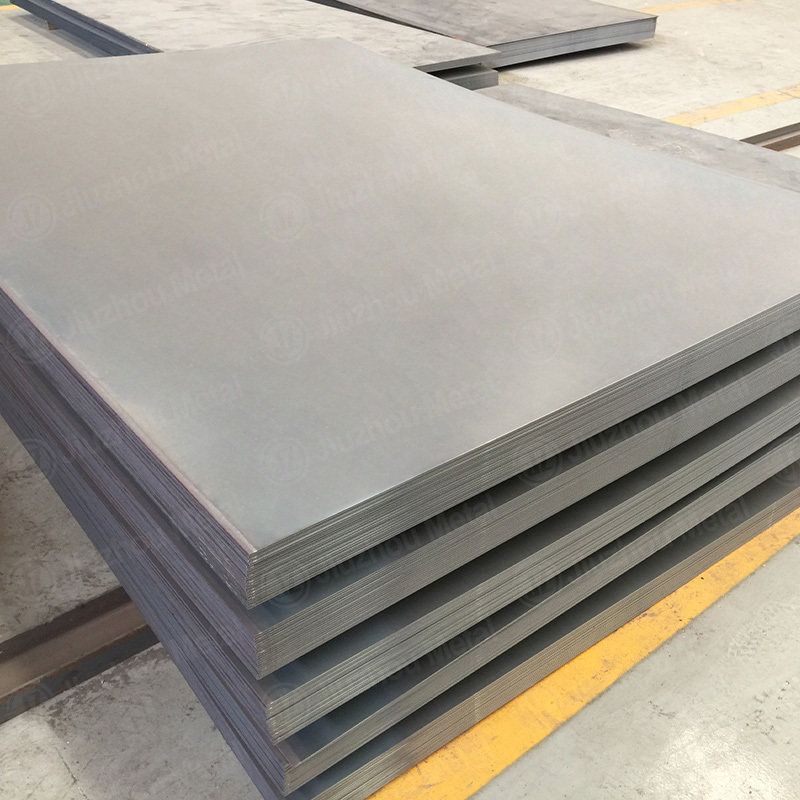

DIN 17155 Pressure Vessel Steel Plate

DIN 17155 pressure vessel steel plate is steel for boilers and pressure vessels. In addition to boilers and pressure vessels, DIN 17155 pressure vessel steel is also used to manufacture high-temperature liquid delivery pipes.

Email：cong@jsygsteel.com

WhatsApp：+86 19963059386

product description

DIN 17155 Pressure Vessel Steel Plate Description

DIN 17155 pressure vessel plate not only has very high strength but also has very good toughness, wear resistance, fatigue resistance, impact resistance, easy welding processability and cold forming performance. DIN 17155 pressure vessel steel plate is widely used in gas, petrochemical and other industries, especially suitable for manufacturing boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic Bracket etc.

Product Parameters

Product Name	DIN 17155 Pressure Vessel Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

DIN 17155	C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo
15Mo3	0.12-0.20	0.10-0.35	0.40-0.90	0.035	0.03	-	0.25	0.3	0.3	0.25-0.35
13CrMo44	0.08-0.18	0.10-0.35	0.40-0.10	0.035	0.03	-	0.70-1.10	0.3	-	0.4-0.6
17Mn4	0.14-0.20	0.4	0.90-1.40	0.035	0.03	0.02	0.25	0.3	0.3	0.1
10CrMo9-10	0.06-0.15	0.5	0.40-0.70	0.035	0.03	-	2.00-2.50	0.3	-	0.9-1.0
19Mn6	0.2	0.5	0.90-1.70	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HI	0.16	0.35	0.40/1.20	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HII	0.2	0.35	0.50-1.30	0.035	0.03	0.02	0.25	0.3	0.3	0.1

Scope of Application

DIN 17155 pressure vessel steel plates are widely used in gas, petrochemical and other industries, especially in the manufacture of boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic supports, etc.

Equivalent Material

DIN 17155	Material No.	EN 10028-2	UNI 5869	BS 1501	A 36087	ASTM	JIS G3115
HI	1.0345	P235GH	Fe360 - 1KW	161 Gr.360 / 164 Gr.360	A37RCI	A285 Gr.C / A414 Gr.C / A516 Gr.55	SPV 24
HII	1.0425	P265GH	Fe410 - 1KW	161 Gr.400 / 164 Gr.400 / 224 Gr.400	A42RCI	A414 Gr.E / A516 Gr.60	-
17Mn4	1.0481	P295GH	Fe460 - 1KW	224 Gr.490	A47RCI	A414 Gr.F / A516 Gr.65	SPV 32
19Mn6	1.0473	P355GH	Fe510 - 1KW	-	A52RCI	A414 Gr.G	SPV 36
15Mo3	1.5415	16Mo3	15Mo3	1503 - 243 B	16Mo3	A204 Gr.B	-
13CrMo44	1.7335	13CrMo4-5	14CrMo4.5	620 Gr.27	14CrMo4.5	A387 Gr.12	-
10CrMo910	1.7380	10CrMo9-10	-	622 Gr.31	-	A387 Gr.22	-

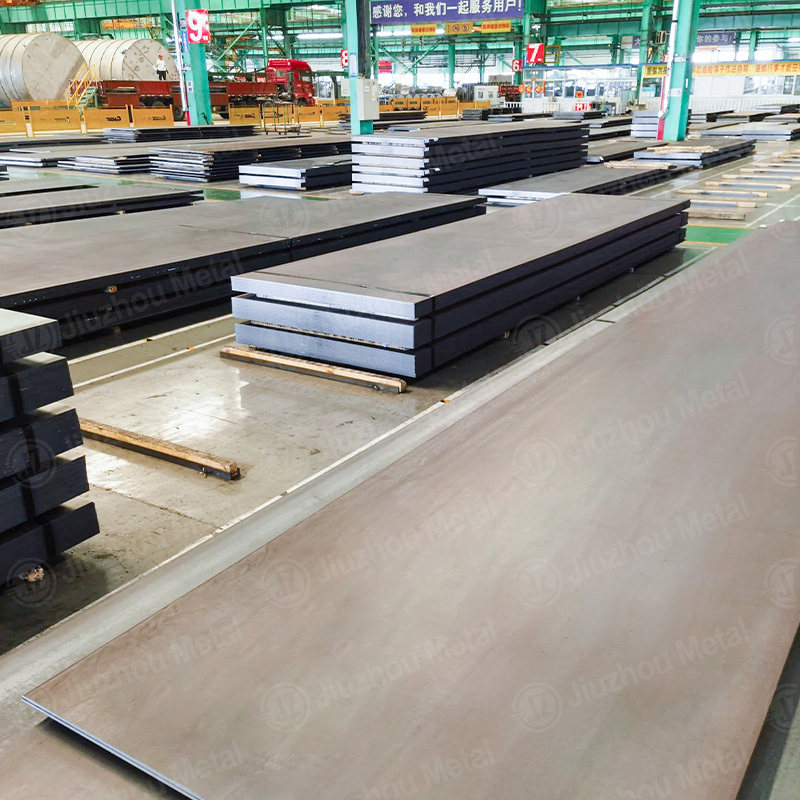

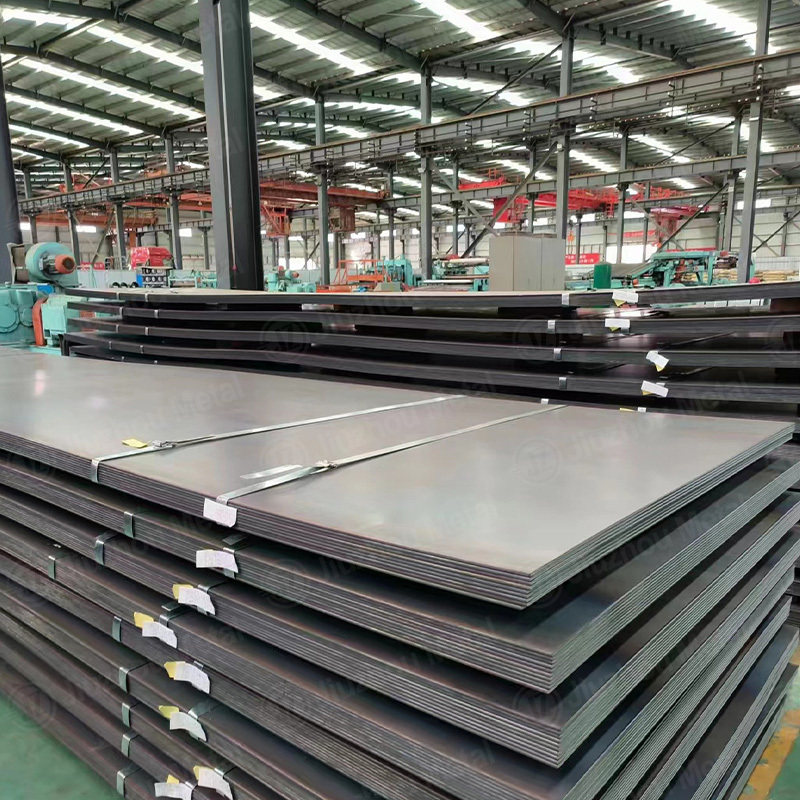

Factory Display

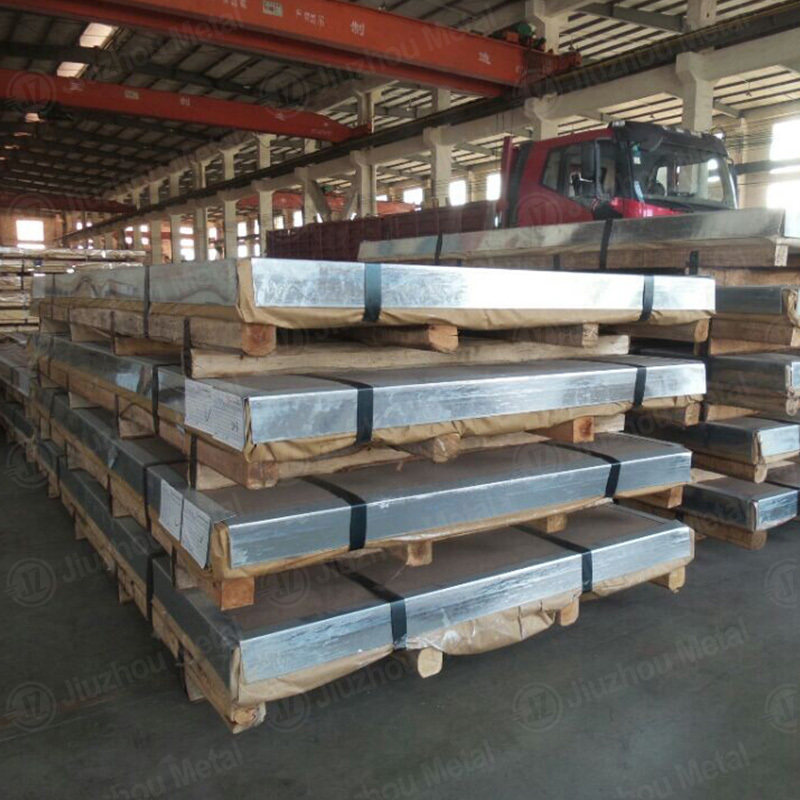

Mode Of Transport

FAQ

Q1: Are you a manufacturer or a trading company?
A: We are a professional metal products manufacturer based in Shandong, China, with our own production facilities and a strong supply chain. We specialize in carbon steel and stainless steel products, with over 100,000 tons of stock available year-round.

Q2: Where is your company located? Can I visit your factory?
A: Our company is located in Shandong, China. We welcome customers and partners from all over the world to visit our facilities. Please contact us in advance to arrange a visit.

Q3: What products does your company mainly supply?
A: We mainly supply carbon steel and stainless steel products in various forms, including plates, pipes, coils, bars, structural steel (H-beam, channel steel, angle steel), and customized metal components. We cover a full range of specifications to meet diverse customer needs.

Q4: Do you support OEM or customized orders?
A: Yes. We have years of experience in product customization. We can produce according to your drawings, samples, or specific technical requirements. Please contact us with your customization needs.

Q5: What material grades do you offer?
A: For carbon steel, we offer grades such as A36, S235JR, Q235, Q345, and more. For stainless steel, we offer 304, 304L, 316, 316L, 201, 430, and other common grades. Custom grades are available upon request.

Q6: How do you guarantee product quality?
A: Our factory operates under strict QA/QC standards. Every product is inspected during production and before shipment to ensure it meets agreed quality specifications. We can provide mill test certificates and accept thirdparty inspections upon request.
